Casing Collar Locating Tool – Pile Detection
The Casing Collar Locator Tool is specifically designed to measure changes in magnetic flux caused by magnetic materials, such as steel casing or piles.
This tool is essential for accurately determining the position of steel casing, joints, and variations in the mass of magnetic material in close proximity to boreholes.
Key Features
Specifications
- Dimensions: 700mm (length) x 38mm (diameter)
- Weight: 3.8kg
- Maximum Temperature: 80°C
- Maximum Pressure: 20 MPa
Logging Conditions
- Logging Speed: 2–5 m/min (free running)
Borehole Compatibility
- Proximity to Pile: Borehole must be within 0.5m of the pile for accurate detection
- Minimum Diameter: 50mm
- Environment: Suitable for dry or fluid-filled boreholes
- Lining: Compatible with unlined, steel, or plastic-lined boreholes
The Casing Collar Locator Tool – Pile Detection is an indispensable tool for accurately locating steel casings and piles near boreholes. Its precision and reliability make it ideal for geotechnical and engineering applications requiring detailed magnetic material analysis.
Related Tools

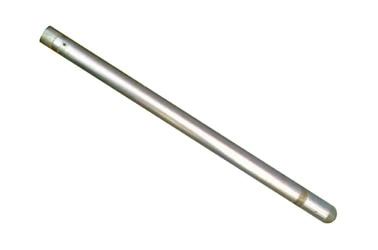

Casing Collar Locating Tool
