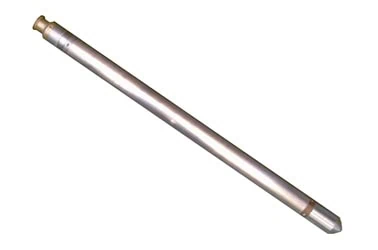

Gyro Verticality Tool
Accurate Borehole Orientation and Deviation Surveys
The Gyro Verticality Tool is a highly precise instrument designed to conduct multishot orientation and deviation surveys of boreholes in any environment, including steel casing and drill pipe.
Using a North Seeking Gyro, the tool operates independently of magnetic influences, making it ideal for areas with magnetic anomalies or steel interference.
Key Features
Specifications
- Dimensions: 1320mm (length) x 34mm (diameter)
- Weight: 5.2kg
- Tilt Range: 0°–70° with an accuracy of ±0.5°
- Azimuth Range: 0°–360° with an accuracy of ±2°
- Maximum Temperature: 80°C
Logging Conditions
- Measurements are taken at specified intervals for comprehensive surveys.
Borehole Compatibility
- Minimum Diameter: 40mm
- Environment: Suitable for dry or fluid-filled boreholes
- Lining: Compatible with unlined, plastic, or steel-lined boreholes
The Gyro Verticality Tool is an essential solution for accurate borehole orientation and deviation surveys. Its advanced gyro technology and robust design ensure reliable results in challenging environments.
