Verticality Tool
Accurate Borehole Orientation and Tilt Measurement
The Verticality Tool combines magnetometers and inclinometers to precisely measure the inclination (tilt) and direction (azimuth) of a borehole. It can be operated either centralised or side-walled during data acquisition. The tool calculates the borehole’s position at any depth relative to the log origin, providing X (West-East), Y (South-North), and Z (true depth) coordinates.
While inclination readings are unaffected by steel, azimuth readings can be influenced if steel is present within 1 metre of the borehole. For accurate azimuth measurements, the tool should be run in unlined, plastic, or stainless steel-lined boreholes.
Key Features
Specifications
- Dimensions: 1250mm (length) x 38mm (diameter)
- Weight: 8.5kg
- Tilt Range: 0°–90° with ±0.5° accuracy
- Azimuth Range: 0°–360° with ±1° accuracy
- Maximum Temperature: 80°C
Logging Conditions
- Logging Speed: 2–4m/min
Borehole Compatibility
- Minimum Diameter: 50mm
- Environment: Dry or fluid-filled boreholes
- Lining: Suitable for unlined, plastic, or stainless steel-lined boreholes
The Verticality Tool is a reliable solution for accurately determining borehole orientation and tilt. Its advanced technology ensures precise data for geotechnical, hydrogeological, and structural investigations.
Related Tools

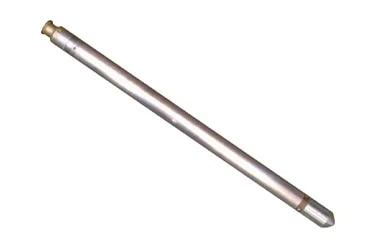

Gyro Verticality Tool
